Description
SPECIFICATIONS:
| Model | FR10000 |
| Dehumidification Capacity | 63.7 kg/h |
| Process Air Flow | 10000 m³/h |
| Regeneration Air Flow | 2700 m³/h |
| Installed Power (Electric) | 90.0 kW |
| Power Supply | 400V/3ph/50Hz |
| Max Current Absorbed | 158.6 A |
| Sound Pressure | 72 dB(A) |
| Operating Temperature | -30°C to +40°C |
| Empty Weight | 700 kg |

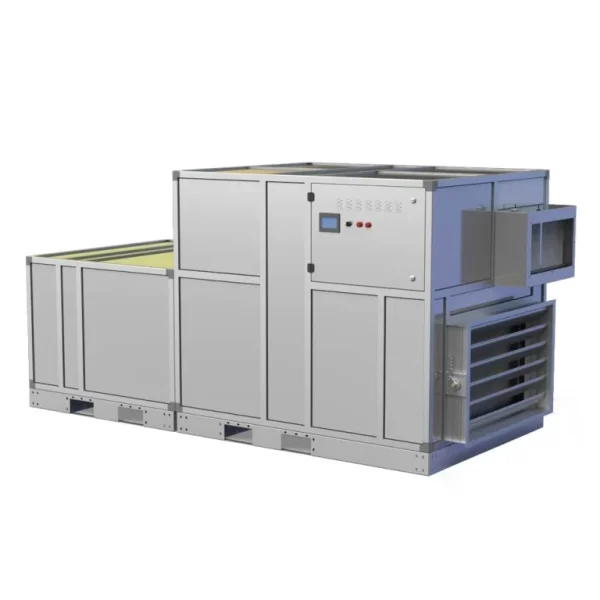

The Ultimate Solution for a Dry Climate: FRAL Adsorption Dehumidifiers
In the humid climate of the Middle East, effective humidity control is critical for preserving goods, ensuring the integrity of industrial processes, and maintaining comfortable indoor environments. The FRAL FR10000 model, part of the FRAL series of desiccant dehumidifiers in Dubai, offers a state-of-the-art solution, designed for superior performance where conventional refrigeration dehumidifiers may fail. With a dehumidification capacity of 63.7 kg/h and a process air flow of 10,000 m³/h, this unit operates on the principle of adsorption, a process that is highly effective regardless of ambient temperature.
This dehumidifier is particularly well-suited for the demanding cold room dehumidification requirement in Dubai, as it operates reliably between temperatures as low as -30°C and as high as +40°C. At the heart of the system is a precision-engineered desiccant rotor, a finely fluted structure with a huge contact surface area. This rotor, bonded with a hygroscopic material like Silica Gel, actively draws moisture from the process air without the need for condensation or free water. The dehumidified air is then discharged, while a smaller, heated regeneration airflow of 2,700 m³/h passes in the opposite direction, stripping the moisture from the rotor and expelling it as vapor. This continuous, reliable process ensures that the FRAL FR10000 can deliver a consistently dry environment. The rotor is also not affected by saturated air, meaning it can be used with a pre-cooling coil for optimal performance.
Durability is a key focus of the FRAL design. The unit is built with a robust casing of painted galvanized steel, with a stainless steel option available for specialized applications. The electrical panel is made in compliance with European regulations and all units include standard components like a mains switch and magneto thermal switches. The control system is equally advanced, featuring a PLC with a user-friendly touch-screen terminal that provides comprehensive control over all functions, including fan operation, regeneration, and alarms. This allows for seamless integration into building management systems (BMS) for enhanced monitoring and control.
For professionals seeking a high-performance solution for their projects, the FRAL FR10000 is the ideal choice. With an installed power of 90.0 kW and a maximum current draw of 158.6 A, it is designed for low maintenance, with easily accessible components and standard G4 filters on both the process and regeneration air inlets. Its quiet operation at a sound pressure level of 72 dB(A) ensures minimal disruption. With its high-efficiency components, robust build quality, and precise control capabilities, the FRAL FR10000 provides a powerful and reliable solution to combat humidity, protecting your assets and ensuring optimal climate conditions across a range of industrial, commercial, and construction applications in the UAE.
